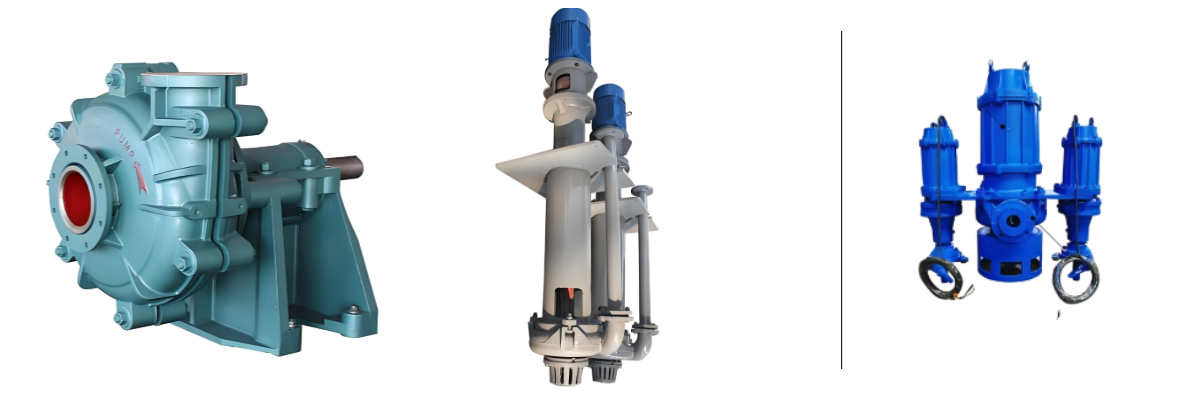

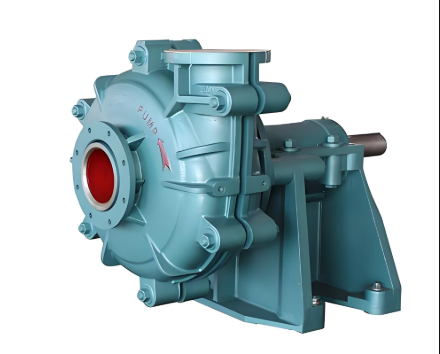

Mining Slurry Pump
1. High operating efficiency and energy conservation, with long-term operation providing significant energy savings for users.
2. Flow-through components are made of a highly wear-resistant high-chromium alloy, resulting in a long service life.
3. Rational structural design, reliable operation, low vibration, low noise, and easy maintenance.
4. Compact size and low mass.
5. Reliable sealing performance.
6. Applicable Industries: Power generation, metallurgy, coal, alumina, building materials, sewage treatment, and other industries for conveying corrosive or corrosive slurries containing solid particles.

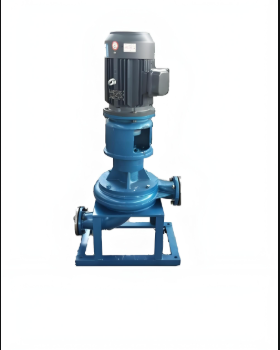

The working precept of a vertical slurry pump is primarily based on the established ideas of a centrifugal pump. The centrifugal pressure generated via the rotation of the impeller permits the transport of solid-liquid mixtures.
The precise system is as follows:
Core Working Principle
When the impeller rotates at excessive velocity underneath the impact of an electric powered motor, a low-pressure region types at the middle of the impeller.
Liquid (slurry) containing strong particles on the outdoor is drawn into the pump due to the strain differential. As the impeller rotates, the slurry is flung towards the edges by means of centrifugal force, concurrently gaining kinetic and stress energy.
Energy Conversion and Transport
Kinetic Energy Conversion: After flowing out of the impeller at excessive speed, the slurry enters the diffusion chamber of the pump casing, the place kinetic strength is step by step transformed into stress energy. It is in the end transported at a greater strain via the pipeline to the goal location.
Continuous Transport: The impeller rotates continuously, always drawing in and discharging slurry, developing a non-stop transport cycle.
Structural Features
Vertical slurry pumps use a plenum graph to decrease backpressure. Flow-through factors (such as the impeller and pump casing) are frequently made of wear-resistant forged iron or rubber to beautify abrasion resistance.
Their light-weight format and mounting approach minimize protection costs
