Hydraulic Slurry Pump
1. Containerized mechanical seal. Multiple springs are effectively protected externally, and static rings are compensated.
2.The default friction pair material is carbide + carbide, the auxiliary seal material is fluororubber, and the base material is high-quality stainless steel. According to different working conditions of customers, you can also re-match them. For example, in alkaline working conditions, the auxiliary seal O-ring can be selected as EPDM rubber, and the base material can be selected as 2Cr13, etc.

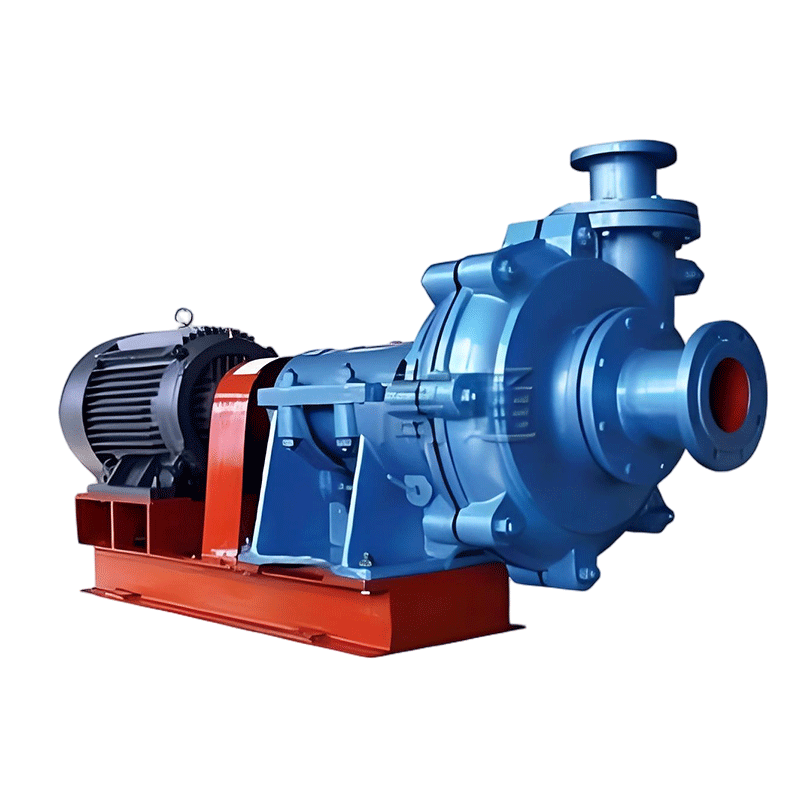

100ZJ-50 slurry pump, full name 100ZJ-I-A50, inlet 150mm, outlet 100mm. Maximum head can reach 101 meters, often used as filter press feed pump. The pump casing structure is a double pump structure, the impeller, volute, and guard plate are made of high chromium alloy A05, and are often used in coal washing plants and other working conditions. The sealing methods are: pressure relief cover and auxiliary impeller seal, or mechanical seal. The mechanical seal model is: ZJ-100. There are three bearings, namely: 1 disc 42316. 2 disc 46316. The transmission method is DCZ transmission, and there are also belt transmission.
Company Strength:
Hebei Grandwatt Pump Industry Co., Ltd. has been deeply rooted in the water pump industry for many years, committed to delivering efficient and reliable pumping solutions to customers worldwide. With a modern manufacturing base covering over 30,000 square meters, our factory is equipped with intelligent production lines and advanced testing equipment. We boast an annual production capacity of more than 200,000 units, offering a comprehensive range of products including industrial pumps, submersible pumps, centrifugal pumps, and sewage pumps.
Our products are widely used in municipal engineering, agricultural irrigation, industrial circulation, and building water supply, among other sectors.
