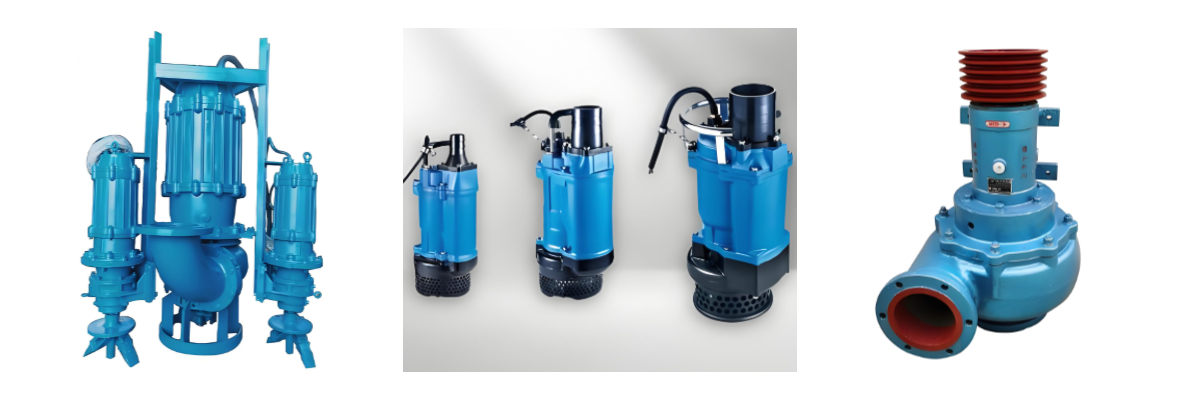

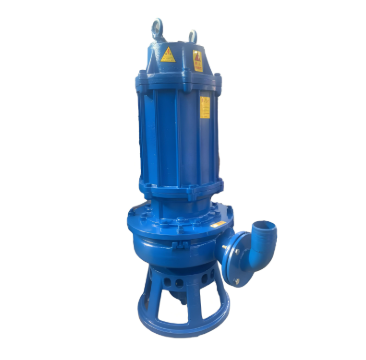

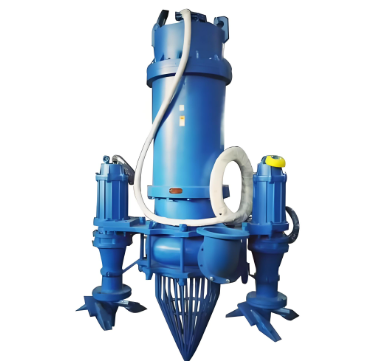

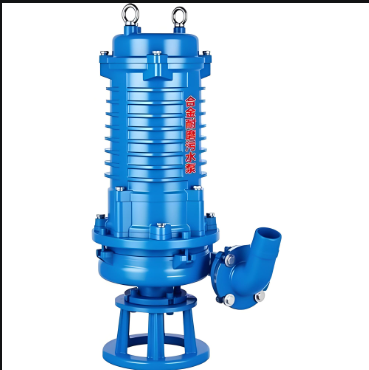

Submersible Pump For Septic Tank
Compact structure and small footprint
Submersible sewage pumps can be hooked up at as soon as in the sewage tank, doing away with the prefer for a pump dwelling and substantially saving land and infrastructure costs.
Easy set up and maintenance
Small pumps can be hooked up freely, while massive pumps are equipped with an automatic coupling device, enabling a long way flung set up and renovation barring coming into the sewage tank.
1. Analysis of Core Parameters of Submersible Sewage Pumps
Submersible sewage pumps are quintessential gear in fields such as sewage therapy and municipal engineering. Their overall performance immediately affects their effectiveness. The following is a distinctive rationalization of frequent parameters:
1. Flow fee (Q): The quantity of liquid pumped per unit time, measured in m³/h or L/s. For example, a small family submersible sewage pump normally has a go with the flow price of 5-10 m³/h, whilst an industrial pump can attain over one thousand m³/h (refer to "GB/T 24674-2021 Submersible Electric Pumps for Sewage and Wastewater"). The waft price ought to be matched to drainage requirements. Excessive glide fees waste energy, whilst too low might also now not meet discharge requirements.
2. Head (H): The top the pump can elevate liquid, measured in meters (m). The usual head vary is 5-50 m. High-head pumps (e.g., over 50 m) require one-of-a-kind design. When deciding on a pump, reflect onconsideration on pipe resistance losses. Actual head = vertical peak + pipe friction losses (approximately 10%-20% extra value). three Power (P): This is divided into motor enter strength and output power, measured in kilowatts (kW). For example, a 1.5kW submersible sewage pump is appropriate for family basement drainage, whilst a pump over 30kW is basically used in industrial applications. Efficiency (η) is the ratio of output energy to enter power, with magnificent pumps accomplishing 80%-90% efficiency.
II. Other Key Parameters and Selection Considerations
1. Material:
- Cast iron: Low cost, appropriate for regular sewage;
- Stainless metal (304/316): Highly corrosion-resistant, appropriate for acidic, alkaline, or seawater environments;
- Engineering plastics: Lightweight, appropriate for small equipment.
2. Speed (n): Common speeds are 1450 rpm (4-pole motor) or 2900 rpm (2-pole motor). Higher speeds produce greater float charges however additionally end result in greater fast wear.
3. Protection ranking (IP): Submersible sewage pumps generally require IP68 (completely water resistant and dustproof) to make certain safe, long-term underwater operation. III. Parameter Correlation and Practical Application Examples
For a municipal sewage remedy project, a submersible sewage pump with a go with the flow price of 200 m³/h and a head of 15 m is required. According to the "Pump Product Selection Manual," a 22 kW strength rating, corrosion-resistant stainless steel, and automated liquid degree manipulate are recommended. If the medium carries strong particles, the drift diameter (e.g., 50 mm or greater) have to additionally be considered.
In summary, submersible sewage pump decision requires a complete consideration of parameters such as glide rate, head, and medium characteristics, mixed with expert requirements (such as GB/T and ISO 9906) and real working prerequisites to keep away from troubles such as "falsely specced parameters" or "overpowering a small system."
